INSPECTION LAMPS
One of our main product categories is our inspection lamps for wafer or general surface inspection. With more than 10 years of working life, water resistance, high light quality, and made in Austria
5 WATT INSPECTION LAMPS
- Product : 5 watt inspection lamp
- Description : The 5 watt inspection lamp was created to inspect wafers, glas or other critial surfaces. By using the mounting flange it´s possible to fix the lamp on any process machine or microscope. Only by 3 M3 screws the lamp gets attached to the surface.
Products Specifications:
- NO UV or infraded light
- Long service life
- Colour selection for each inspection process
- Power supply is 110V to 230V /50Hz
Stocknumber for Order | Colour | Colour tmperature | half intensity width | Candela |
LMB5_001_WHT | with | 4500K | —————– | 180 |
| LMB5_001_RBL | Royal blue | 455nm | 20nm | 80 |
| LMB5_001_BLU | blue | 470nm | 25nm | 100 |
| LMB5_001_CYA | Cyan green | 505nm | 30nm | 600 |
| LMB5_001_GRE | green | 530nm | 35nm | 500 |
| LMB5_001_AMB | orange | 590nm | 14nm | 600 |
| LMB5_001_ROR | red-orange | 617nm | 20nm | 825 |
| LMB5_001_RED | red | 627nm | 20nm | 660 |
15 WATT INSPECTION LAMP
- Product : 15 watt inspection lamp
- Description : The 15 watt inspection lamp was created to inspect wafers, glas or other critial surfaces. By using the mounting flange it´s possible to fix the lamp on any process machine or microscope. Only by 3 M3 screws the lamp gets attached to the surface.
Products Specifications:
- NO UV or infraded light
- Long service life up to 10 years
- Colour selection for each inspection process
- Power supply is 110V to 230V /50Hz
Stocknumber for Order | Colour | Colour tmperature | half intensity width | Candela |
LMB15_002_WHT | with | 4500K | —————– | 180 |
| LMB15_002_RBL | Royal blue | 455nm | 20nm | 80 |
| LMB15_002_BLU | blue | 470nm | 25nm | 100 |
| LMB15_002_CYA | Cyan green | 505nm | 30nm | 600 |
| LMB15_002_GRE | green | 530nm | 35nm | 500 |
| LMB15_002_AMB | orange | 590nm | 14nm | 600 |
| LMB15_002_ROR | red-orange | 617nm | 20nm | 825 |
| LMB15_002_RED | red | 627nm | 20nm | 660 |
15 WATT HAND HELD INSPECTION LAMP
- Product : 15 watt hand held inspection lamp
- Description : For more flexibility at the inspection work place we also offer a 15 watt hand held inspection lamp. With a work range of up to 3 meters the hand held inspection lamp offers a lot more flexibility. The lamp gets placed into a adapter which gets screwed on the workplace with 2 M5 screws.
Products Specifications:
- NO UV or infraded light
- Long service life up to 10 years
- Colour selection for each inspection process
- Power supply is 110V to 230V /50Hz

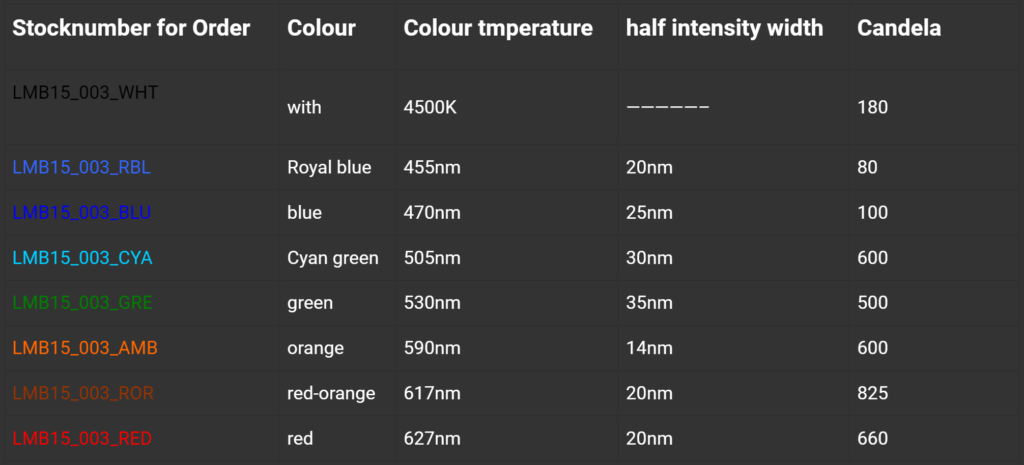

Stocknumber for Order | Colour | Colour tmperature | half intensity width | Candela |
LMB15_003_WHT | with | 4500K | —————– | 180 |
| LMB15_003_RBL | Royal blue | 455nm | 20nm | 80 |
| LMB15_003_BLU | blue | 470nm | 25nm | 100 |
| LMB15_003_CYA | Cyan green | 505nm | 30nm | 600 |
| LMB15_003_GRE | green | 530nm | 35nm | 500 |
| LMB15_003_AMB | orange | 590nm | 14nm | 600 |
| LMB15_003_ROR | red-orange | 617nm | 20nm | 825 |
| LMB15_003_RED | red | 627nm | 20nm | 660 |
